Massey Ferguson Top Links

Massey Ferguson Top Links from AgriWell Spares (US range, 3 Point Linkage Parts): 10 part numbers with dimensions. Part for the top link of the tractor 3-point linkage (three-point hitch). Made in our factory in Ludhiana, India. Ask for a quote.

Forged Eye Bolt, Material C-40.
Balls (Material C-20, Hardness 52-58 HRC, Case Depth 0.4 - 0.8 mm)
Tube Powder coated (Optional Colour)
Trivalent Zinc Plating.

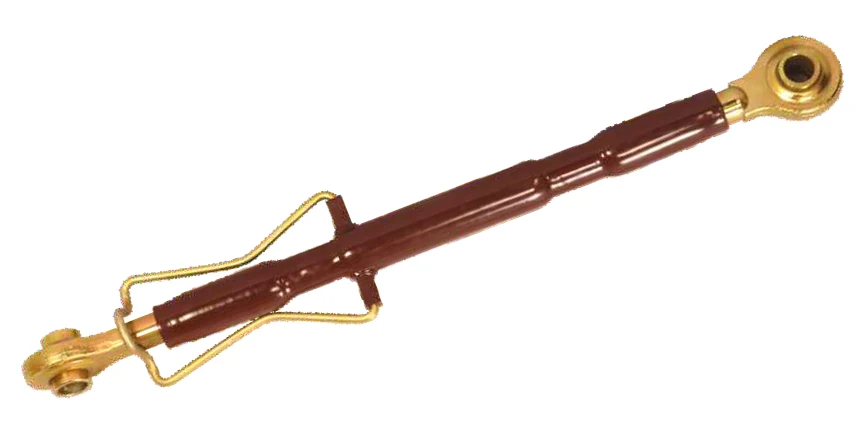

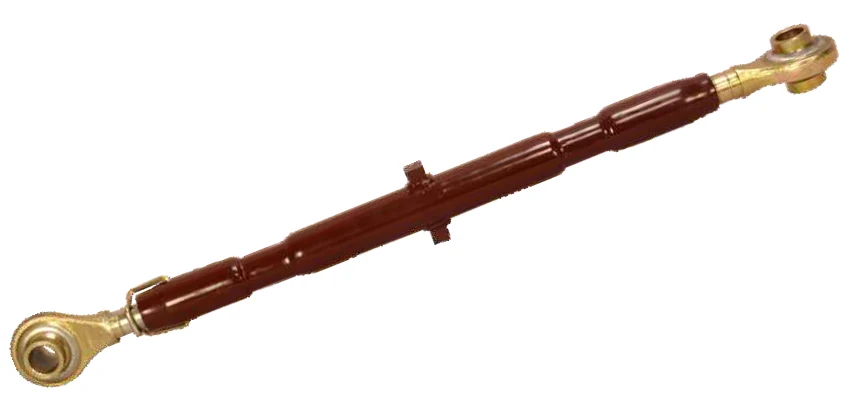

Massey Ferguson Top Links – US range – AgriWell Spares

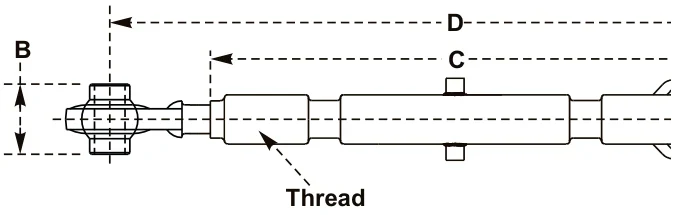

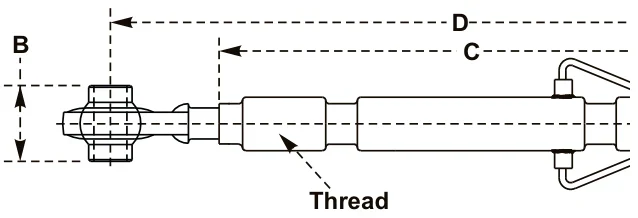

Massey Ferguson Top Links – dimension drawing with measurements

Part numbers

AWSMF-111643811, AWSMF-111647611, AWSMF-111654611, AWSMF-111654622, AWSMF-111654612, AWSMF-111647612, AWSMF-111647622, AWSMF-111643812, AWSMF-111643822, AWSMF-11452722

Source: US catalogue, page 8. Contact AgriWell Spares
