Hydraulic Cylinder Pins

Hydraulic Cylinder Pins from AgriWell Spares (US range, 3 Point Linkage Parts): 10 part numbers with dimensions. Pins for the tractor 3-point linkage, implements and trailers. Made in our factory in Ludhiana, India. Ask for a quote.

Pins for hydraulic cylinders and jacks in popular sizes.
Standard cylinder clips included.
Will accommodate “R” clip pin.,
Yellow zinc dichromate plated.

Hydraulic Cylinder Pins – US range – AgriWell Spares

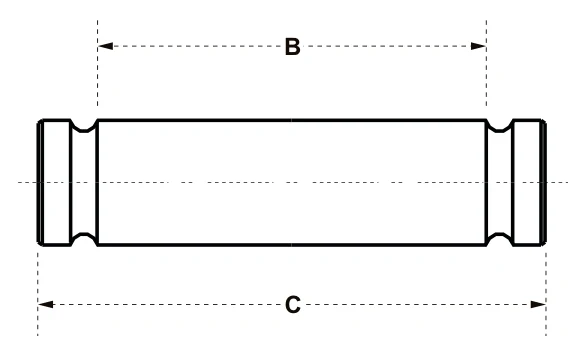

Hydraulic Cylinder Pins – dimension drawing with measurements

Part numbers

AWHCP9427, AWHCP9428, AWHCP9429, AWHCP9430, AWHCP9431, AWHCP9432, AWHCP9433, AWHCP9434, AWHCP9435, AWHCP9436

Source: US catalogue, page 40. Contact AgriWell Spares
