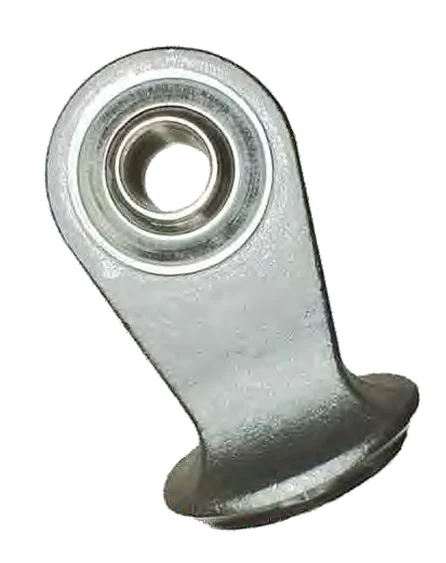

Weld-on End For Hydraulic Cylinders

Weld-on End For Hydraulic Cylinders from AgriWell Spares (European range, 3 Point Linkage Parts): 5 part numbers with dimensions. Balls, bushes and ends for tractor lift arms, lower links and top links. Made in our factory in Ludhiana, India. Ask for a quote.

• Forged Weld-On End, Material C-40.
• Balls (Material C-20, Hardness 52-58 HRC, Case Depth 0.4 - 0.8 mm)
• Weld-On End, Oil dipped (Rust Preventive).
• Trivalent Zinc Plating.

Part numbers

WOE-HC852510560, WOE-HC852510563, WOE-HC852510570, WOE-HC852510880, WOE-HC853210880

Source: European catalogue, page 25. Contact AgriWell Spares
