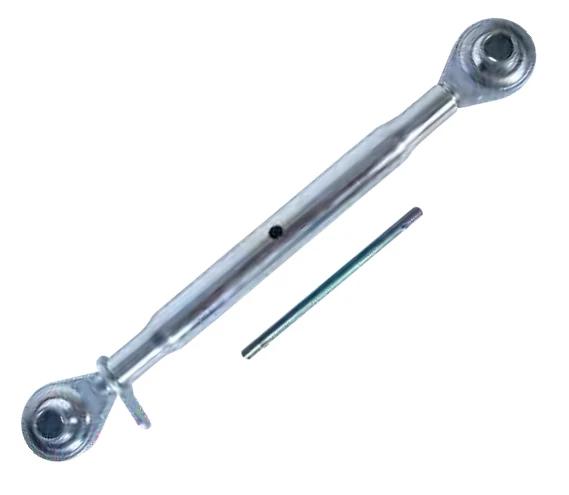

Top Link Assembly

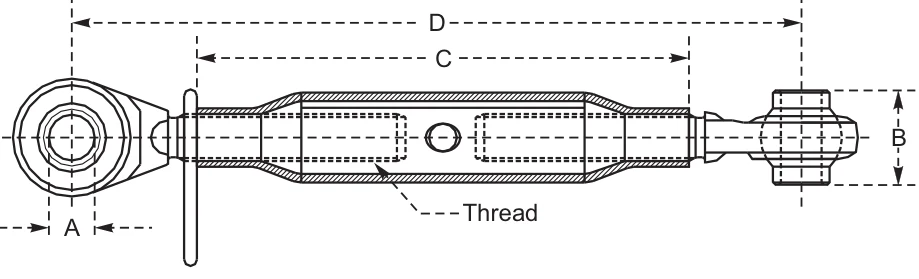

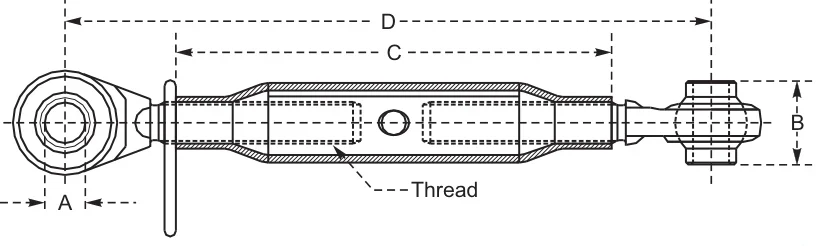

Top Link Assembly from AgriWell Spares (European range, 3 Point Linkage Parts): 73 part numbers with dimensions. Part for the top link of the tractor 3-point linkage (three-point hitch). Made in our factory in Ludhiana, India. Ask for a quote.
- Forged Eye Bolt, Material C-20/C-40.
- Balls (Material C-20, Hardness 52-58 HRC, Case Depth 0.4 - 0.8 mm)
- Trivalent Zinc Plating.
Part numbers
TLA-2019000, TLA-2025000, TLA-2040000, TLA-2216011, TLA-2218011, TLA-2222011, TLA-2223011, TLA-2228011, TLA-2230011, TLA-2424511, TLA-2428011, TLA-2430011, TLA-2432011, TLA-2437011, TLA-2440011, TLA-2722011, TLA-2727511, TLA-2732011, TLA-2735011, TLA-2737011, TLA-2738011, TLA-2740011, TLA-2743011, TLA-2745011, TLA-2747011, TLA-2750011, TLA-2755011, TLA-2757011, TLA-2732012, TLA-2735012, TLA-2736012, TLA-2737012, TLA-2738012, TLA-2740012, TLA-2743012, TLA-2745012, TLA-2747012, TLA-2750012, TLA-2755012, TLA-2722022, TLA-2727522, TLA-2732022, TLA-2735022, TLA-2737022, TLA-2738022, TLA-2740022, TLA-2743022, TLA-2745022, TLA-2747022, TLA-2750022, TLA-2755022, TLA-2757022, TLA-3035022, TLA-3040022, TLA-3042022, TLA-3046022, TLA-3050022, TLA-3052022, TLA-3056022, TLA-3061022, TLA-3073022, TLA-3636022, TLA-3640022, TLA-3645022, TLA-3652022, TLA-3658022, TLA-3640022A, TLA-3640023, TLA-3646033, TLA-4050022, TLA-4062022, TLA-4050033, TLA-4062033
Source: European catalogue, page 7. Contact AgriWell Spares
