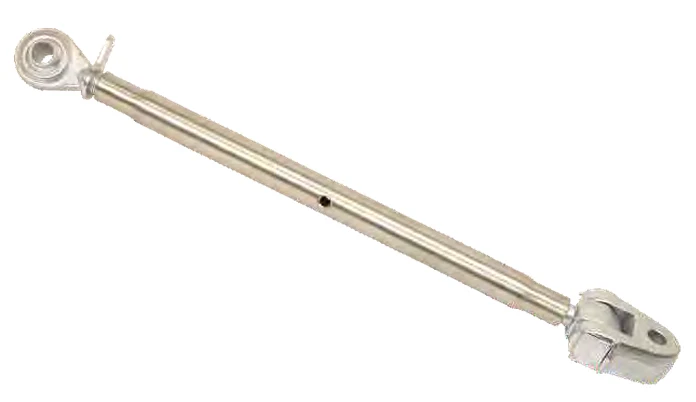

Top Link Assembly With Articulated Yoke
Top Link Assembly With Articulated Yoke from AgriWell Spares (European range, 3 Point Linkage Parts): 18 part numbers with dimensions. Part for the top link of the tractor 3-point linkage (three-point hitch). Made in our factory in Ludhiana, India. Ask for a quote.
- Forged Tie Rod, Material 36CrMn5.
- Forged Eye Bolt, Material C-40.
- Yoke, Material C-40, Hardness 22-28 HRC.
- Balls (Material C-20, Hardness 52-58 HRC, Case Depth 0.4 - 0.8 mm)
- Pin Square Head, Material C-40 (Induction Hardness 52-60 HRC, Case Depth 1.00 - 1.25 mm)
- Tube, Heavy Duty (Thickness 4.50 - 5.00 mm)
- Trivalent Zinc Plating.
Part numbers
TLAY-3636022, TLAY-3640022, TLAY-3645022, TLAY-3648022, TLAY-3652022, TLAY-3658022, TLAY-3636023, TLAY-3640023, TLAY-3645023, TLAY-3648023, TLAY-3652023, TLAY-3658023, TLAY-3636033, TLAY-3640033, TLAY-3645033, TLAY-3648033, TLAY-3652033, TLAY-3658033
Source: European catalogue, page 10. Contact AgriWell Spares
