Articulated Yoke Assembly

Articulated Yoke Assembly from AgriWell Spares (European range, 3 Point Linkage Parts): 30 part numbers with dimensions. Part for the top link of the tractor 3-point linkage (three-point hitch). Made in our factory in Ludhiana, India. Ask for a quote.

Forged Tie Rod, Material 36CrMn5.
Yoke, Material C-40, Hardness 22-28 HRC.
Pin Square Head, Material C-40 (Induction Hardness 52-60 HRC, Case Depth 1.00 - 1.25 mm)
Trivalent Zinc Plating.

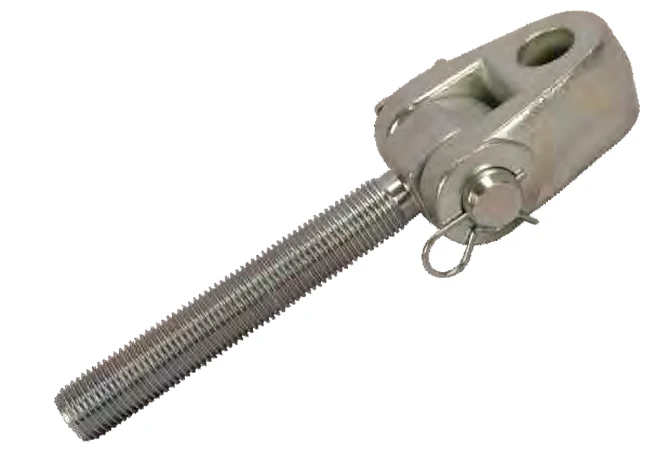

Articulated Yoke Assembly – European range – AgriWell Spares

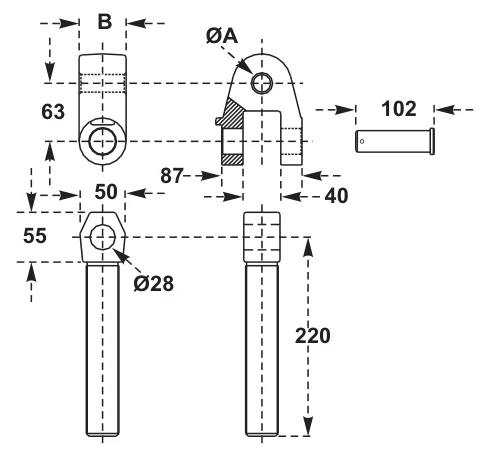

Articulated Yoke Assembly – dimension drawing with measurements

Part numbers

AYE-R303025, AYE-L303025, AYE-R303028, AYE-L303028, AYE-R303030, AYE-L303030, AYE-R303032, AYE-L303032, AYE-R303519, AYE-L303519, AYE-R303520, AYE-L303520, AYE-R303522, AYE-L303522, AYE-R303525, AYE-L303525, AYE-R363020, AYE-L363020, AYE-R363022, AYE-L363022, AYE-R363025, AYE-L363025, AYE-R363030, AYE-L363030, AYE-R363032, AYE-L363032, AYE-R403025, AYE-L403025, AYE-R403032, AYE-L403032

Source: European catalogue, page 15. Contact AgriWell Spares
